Security and logistics checkpoints face a specific mechanical vulnerability. Mixed-profile items—rigid luggage, soft duffel bags, and irregular parcels—converge on the same inspection belts. This variation in weight distribution and material density creates unpredictable mechanical stress. Inaccurate load estimation leads directly to premature motor failure, belt slippage, and image distortion during scanning. When a drive system struggles to pull a heavy, concentrated load across a flat slider bed, the resulting micro-stutters compromise the imaging software. You get costly facility downtime and security bottlenecks. On the flip side, over-engineering the system with massively oversized motors wastes capital and facility footprint. Establishing the correct baggage scanner conveyor load requires a rigorous, physics-based methodology. Facility engineers must calculate and specify conveyor load requirements tailored specifically for the stop-and-go realities of screening environments.
Dynamic vs. Static Loading: Stop-and-go screening operations, especially cascading queue conveyors, require drive systems sized for high starting torque, not just continuous running load.
Mixed-Profile Variability: Accurate capacity planning must account for maximum volumetric dimensions (DIM), bulk density, and concentrated point loads from heavy, irregular parcels.
System Integration: The conveyor's mechanical limits must align precisely with the imaging requirements of the X-Ray Baggage Scanner to prevent image shearing or belt stutter.
Risk Mitigation: Proper tension take-up (typically 1% of belt length) and elongation calculations are critical to preventing belt tracking failures under peak surge conditions.
Table of Contents

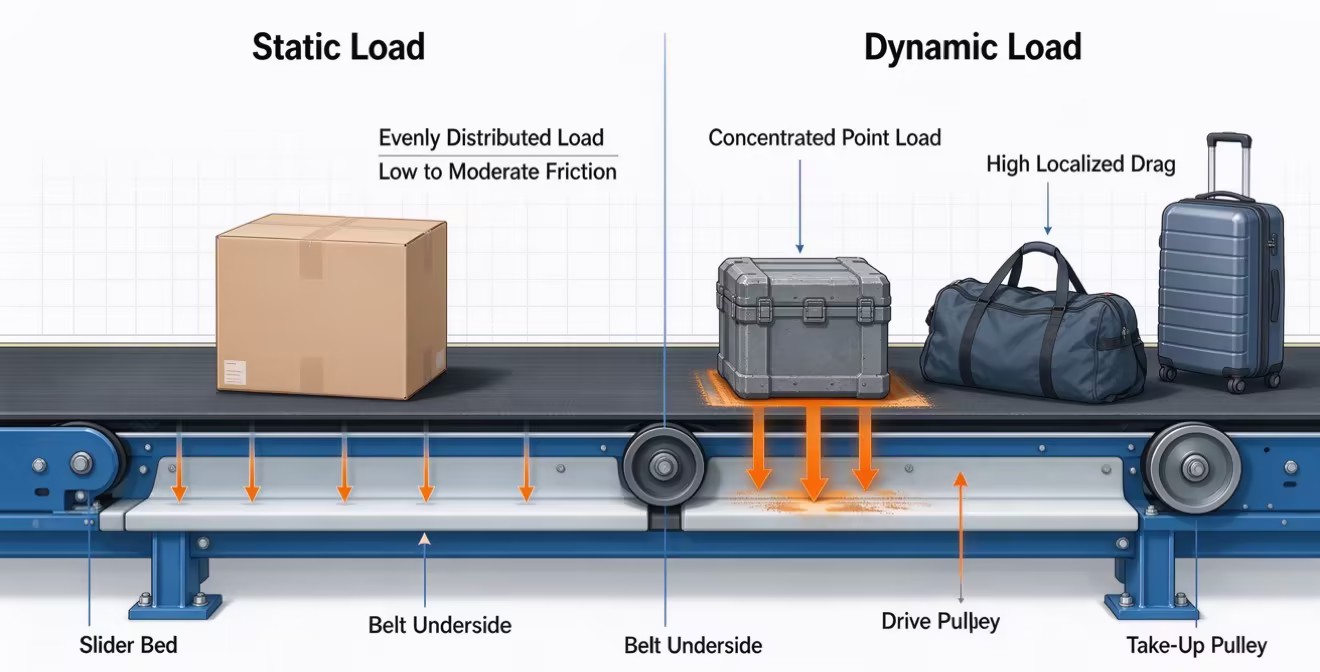

Static load represents the resting weight of the belt and items on it, while dynamic load includes additional forces during starting, stopping, and emergency braking. Screening systems with frequent indexing require motors and drive components that can handle repeated torque spikes, not just continuous operation. Proper dynamic load evaluation prevents belt slip, motor overload, and mechanical failure.
Different package shapes and weight distributions create different tension patterns on the conveyor. Flat, evenly distributed loads move smoothly, while irregular or concentrated heavy items increase friction, belt wear, and structural stress. Conveyor systems must be designed to handle variable load conditions to maintain stable movement and long service life.
Parcel Profile | Load Distribution | Impact on Slider Bed Friction | Mechanical Stress Level |
|---|---|---|---|
Standard Cardboard Box | Evenly distributed across footprint | Low to Moderate | Baseline |
Heavy Pelican Case / Crate | Concentrated point load | High localized drag | Severe |
Soft Duffel Bag | Variable, shifts during movement | Inconsistent, causes tracking issues | Moderate to High |
Rolling Hard-Shell Luggage | Rests on wheels or irregular edges | High point load, risk of rolling back | High |
The structural limits of the conveyor bed dictate how the system handles these loads. General bulk material handling often utilizes troughed roller sections to cradle loose materials. Security screening relies almost exclusively on flat slider beds. Flat beds provide the absolute stability required for clear imaging, but they inherently generate higher friction than roller beds. The drive system must pull the belt against the continuous drag of the slider bed, a factor that worsens exponentially with heavy point loads.
Throughput depends on more than weight capacity. Engineers must consider item size, belt width, spacing between parcels, and material density. Proper spacing allows the imaging system to separate items accurately, while DIM and bulk density calculations ensure the conveyor can handle different freight types without overloading or causing line backups.
Belt speed directly affects conveyor capacity, but it must match the scanner’s imaging capability. If the belt moves too fast, image quality may decrease due to insufficient data capture time. Therefore, conveyor speed is limited by the X-ray sensor system, and all throughput calculations must be designed around the scanner’s approved operating speed.
Friction between the belt and conveyor bed determines the motor load required for operation. Higher friction reduces available power for moving items, while inclined conveyors require additional torque to overcome gravity. Proper belt material selection and load calculations help maintain stable movement and prevent slipping under changing package conditions.
The gear motor must provide enough torque to start and move a fully loaded conveyor without belt slip or overload. Low-backlash speed reducers, such as helical bevel gearboxes, help maintain smooth belt movement and prevent image distortion during scanning. The drive system must also handle sudden load changes from upstream conveyors to keep scanning speed stable and protect image quality.
Motor selection requires balancing torque, energy efficiency, and heat generation. Oversized motors increase power consumption and cooling demands, while undersized motors may overheat under continuous loads. Forced-air cooling, efficient motor housings, and Variable Frequency Drives (VFDs) help control temperature and adjust power usage according to actual conveyor demand.
Conveyor belts naturally stretch under load, so proper tension control is essential for stable operation. Belt elongation typically ranges from 0.1% to 1% depending on the material and applied load. A suitable tension take-up system compensates for this stretch over time, preventing belt slip, tracking problems, and unexpected downtime. PVC belts provide cost-effective performance, PU belts offer higher strength with lower stretch, and fabric-core belts are preferred for heavy-duty applications.
Belt surface selection requires a balance between traction and smooth package transfer. High-grip surfaces prevent heavy luggage from sliding but may trap loose straps or irregular items at conveyor transition points. Using low-friction transition plates helps reduce jamming risks while maintaining reliable movement. The conveyor design must ensure both secure transport and smooth transfer between sections.
To ensure your screening infrastructure operates without mechanical failure or image distortion, take the following actionable steps:
Audit your current peak throughput data, focusing specifically on the heaviest point loads and most irregular parcel dimensions your facility handles.
Consult with a systems engineer to run a 3D load simulation, mapping out the dynamic torque requirements for your specific queue and scanner configuration.
Utilize a comprehensive freight calculator to establish baseline volumetric and chargeable weight requirements before initiating any equipment procurement.
Specify Variable Frequency Drives (VFDs) and torque-limiting couplings in your vendor requirements to protect against unexpected jams and surges.
Implement a strict weekly maintenance schedule focused on belt tracking and tail pulley tension adjustments to counteract natural elongation.
A: Maximum load capacity is calculated by evaluating the belt speed, motor torque, friction coefficient between the belt and slider bed, and the bulk density of the parcels. You must factor in the structural yield limit of the flat slider bed and the maximum breakaway torque the gear motor generates from a dead stop.
A: Static load is the resting weight of the items and the belt itself when stationary. Dynamic load includes the multiplied forces exerted during acceleration, braking, and continuous movement against friction. In stop-and-go queue conveyors, dynamic load dictates the required motor size.
A: The belt speed must perfectly match the internal imaging sensor's integration time. If the belt moves faster or slower than the scanner's fixed calibration, the resulting X-ray images will be distorted, stretched, or compressed. This renders the security inspection completely invalid.
A: Heavy mixed parcels physically stretch the belt fabric over time. Engineers calculate this stretch and design tension take-up mechanisms—typically accommodating 1% of the total belt length. This maintains proper grip on the drive pulley and ensures accurate tracking without slippage.
A: Motors cannot be sized based on average parcel weight. They must be sized for the absolute worst-case scenario: a belt fully saturated with maximum-weight point loads, starting from a dead stop. The motor must overcome massive static friction without stalling or overheating.
A: Yes. DIM calculators help engineers estimate the spatial utilization and bulk density of the items on the belt. This ensures the physical conveyor system handles the actual bulk and volume of the items, aligning mechanical limits directly with commercial freight metrics.
