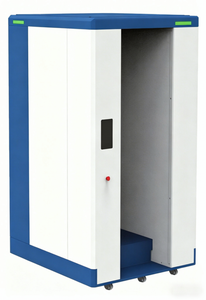

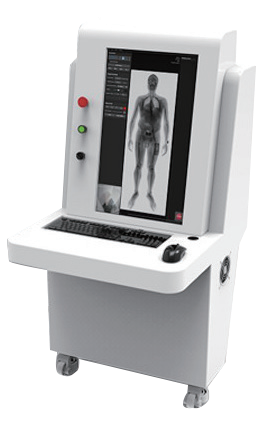

EI-X10SV Micro-Dose X-ray Personnel Security Scanner
Company Profile
Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development, Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.
Product Functions

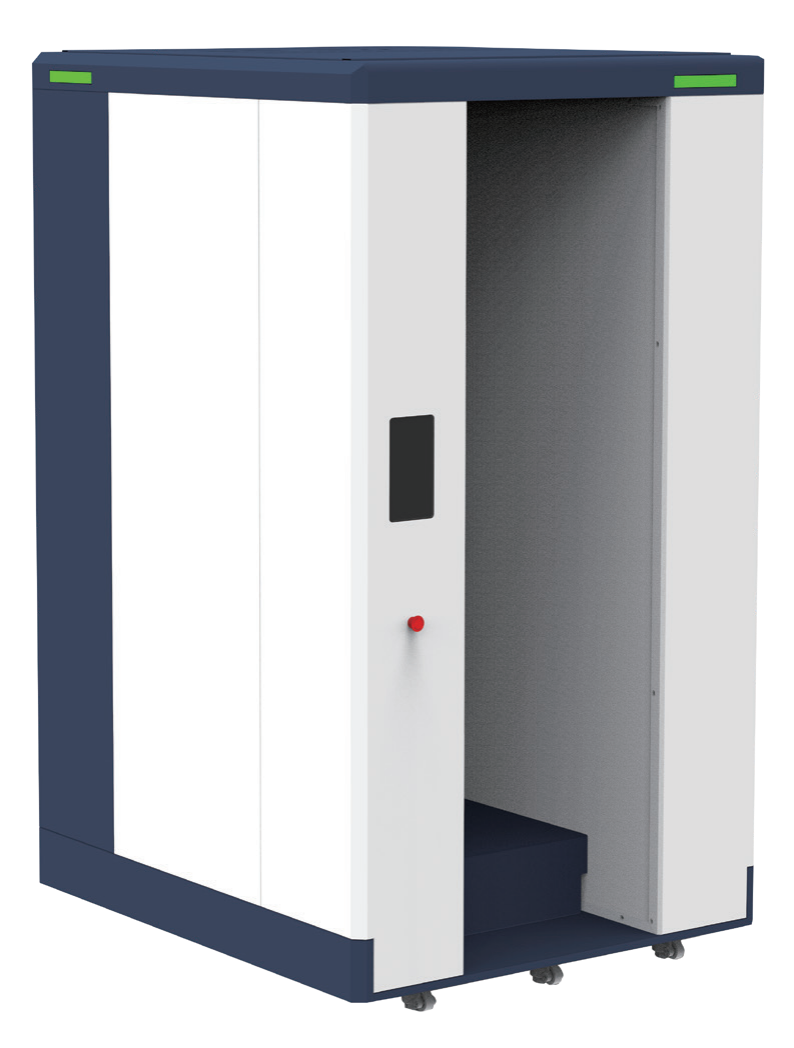

Adopted with the world's leading micro-dose X-ray scanning imaging technology, our product is able to scan both inside and body surface of the inspected person, without the need for manual search. Scanning results and performance against metal/non-metal contraband like guns & ammunition, metal/porcelain knives, explosives, hazardous liquids, microelectronic devices, powdered pills and etc are leading in worldwide. 270° semi-enclosed structure design, effectively suppressing radiation leakage risk; optional upgrade to 360° fully shielded structure.
Parameter | Specification |
|---|
Scanning Area | Full body and partial (dual-screen display) |
Scanning Method | Vertical scanning; the inspected person no need to move to complete full-body |
Single Inspection Time | 4-10 seconds |
Single Inspection Dose | 0.25-5 μSv (adjustable) |
Wire Resolution | 36 AWG / 0.127 mm metal wire (standard); 38 AWG / 0.101 mm metal wire (high) |
Scanning Height | 2.0 meters |
Spatial Resolution | 1.0 mm |
Image Resolution | ≥ 2048 × 1024 PPI |
Contrast Sensitivity | 5% |
Main Unit Dimensions | 1.6 m (L) × 1.4 m (W) × 2.5 m (H) |
Total Equipment Weight | 710 kg (excluding the operation console) |
System Power Consumption | Rated power 850 W; peak power < 4 kW |
Operating Environment | 0°C ~ +40°C / 5% ~ 95% (non-condensing) |
Power Supply Requirements | AC 220V, 50Hz ± 3Hz |
Installation Method | Integrated quick installation, rapid deployment, easy to move |
Applications
Prison, Detection Facility, Drug Rehabilitation Center, Police Anti-Drug Bureau, Border Patrol, Customs, Airport, Railway Stations, Ports, Mine Companies, Warehouse, Government Buildings, Institutes, Meeting Centers
Certification
Compliant with GB15208.4-2018, GA926-2011, ANSI/HPS N43.17-2009 and Tested by China National Inspection and Testing Center for Quality of Security and Alarm Systems. Radiation Safety Permit issued by China Ministry of Ecology and Environment
