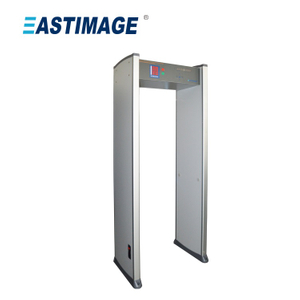

EI-MD3000 Intelligent security gate for contraband

EI-MD3000 Intelligent security gate for contraband

Product Introduction：

EI-MD300 Intelligent security gate for contraband is a device that can be used for the detection of dangerous goods such as knives,  weapons and cans. It can exclude buttons, necklaces, mobile phones, watches, cigarettes, lighters, keys, coins, belt buckles and other  items on the detected personnel to reduce false alarm. The equipment can quickly detect whether dangerous goods such as knives, guns  and tanks are hidden in the personnel's body to alarm by sound and light, and can alarm the hidden location.

Features:

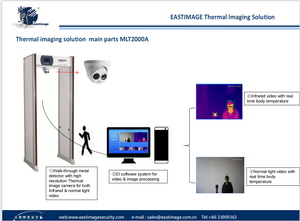

• Thermal imaging: non-inductive collection of temperature, alarm, background record detailed information

• Face capture: alarms and starts to capture when passing with contraband, background record detailed information

• Verification: verification before security check, release for correct, alarm for abnormal, and the gate is closed

• Collection of mobile phone numbers: collect mobile phone numbers without feeling, and connect the data to the public security  system. If the suspect is found, the background will alarm, and quickly respond to the police.

• Big data collection: The big data collected from the front end can be transmitted to the command center in real time to realize  centralized control

Specifications:

• Detection mode…………......……………..... electronic detection mode(EDM), contraband detection mode(CDM), electronic and contraband detection mode(ECDM) , metal detection mode(MDM)

• EDM…………..........……………....................... When passing through the detection door at the speed of 1m/s with phones, ipads and other electronic products , the system will sound and light alarm, words and images indicating the hidden location of the items

• CDM………….........……………........................When passing through the detection door at the speed of 1m/s with prohibited items such as  knives and metal cans, the system will sound and light alarm, words and images indicating the hidden location of the items

• ECDM………………………................………... When passing through the detection door at the speed of 1m/s with electronic products, knives  and metal cans and other contraband, the system will sound and light alarm, words and images indicating the hidden location of the  items

• MDM………………........................................ When passing through the detection door with metal more than the limit, the system will sound  and light alarm

• Enclosure protection class……………… IP53(with cover measures)

• Access control link………………….......... output control signal to the alarm equipment such as the access control gate

• Data transfer………................................... The security door can pass the working parameters of the number of alarm,the number of passing  through, the alarm position and so on through the network cable or wifi to the background server, and form a database file

• Code+USBKEY protection……………....Code+USBKEY double protection, only authorized personnel are allowed to operate, easy management

Installation Data：

• Weight………………….............. 120kg

• Screen……………............. Embedded 25 inch LCD alarm screen

• Passing speed……………............. < 1.2s

• Detection efficiency…………………............… ≥40people/min

• Dimension（mm）…………………............… 2380(H)×1010(W)×650(L)

• Tunnel size（mm）…………………............… 1990(H)×710(W)×650(L)
